Lashing Strapping

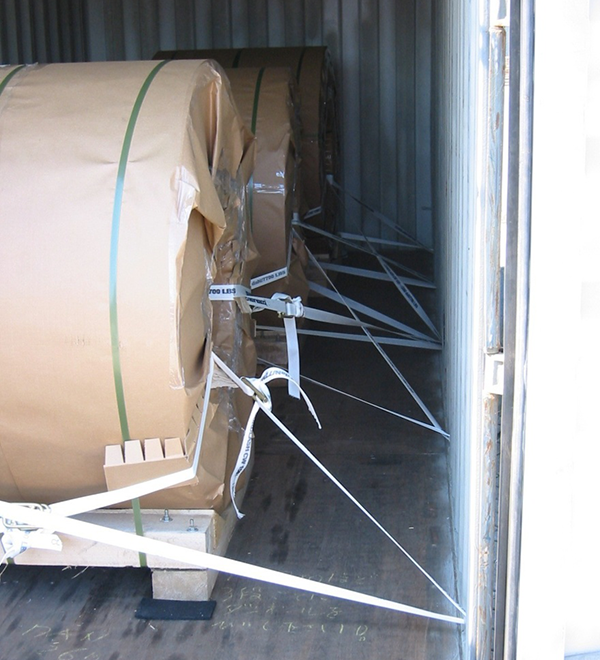

A complete one-way load restraining system made of heavy duty woven polyester yarns for securing complete loads in containers,vessels,wagons,flat racks and trucks.Lashing is bonded by weaving and impregnation.Lashing is water resistant and is recommended for temperatures up to 100 degrees Celsius.
产品内容

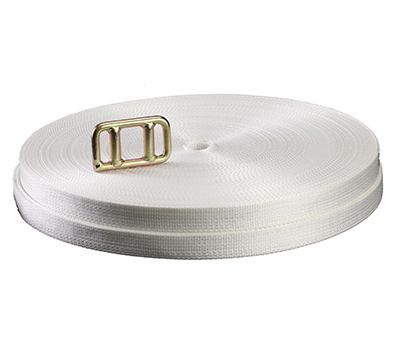

Strap Technical data:
Type | Width | Breaking Strength | Length Per Coil | Packaging Per Pallet | Buckle Type |
JP 40 PES | 13mm | 375daN | 1100m | 36 | E4 |
JP 55 PES | 16mm | 600daN | 600m | 36 | E5 |
JP 75 PES | 19mm | 1100daN | 400m | 36 | E6 |
JP 85 PES | 25mm | 1000daN | 500m | 36 | E8 |
JP 105 PES | 32mm | 2300daN | 250m | 48 | E10,JPS30,JPS40,JPH40 |
JP 200 PES | 40mm | 5000daN | 200m | 48 | JPS40 JPH50 |
JP 750 PES | 50mm | 7500daN | 150m | 48 | JPS50 JPH50 |

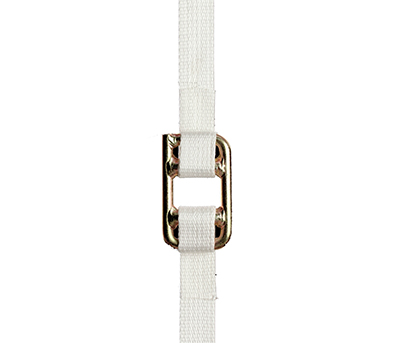

Buckle Technical data:
Type | Width | Thickness | Model | Pcs/carton | Strap Type |
E4 | 13mm | 3.3mm | Galvanized | 1000 | JP40PES |
E5 | 16mm | 3.5mm | Galvanized | 1000 | JP55PES |
E6 | 19mm | 4.0mm | Galvanized | 1000 | JP75PES |
E8 | 25mm | 5.0mm | Galvanized | 500 | JP85PES |
E10 | 32mm | 7.0mm | Galvanized | 250 | JP105PES |
JPS30 | 30mm | Galvanized | 160 | JP105PES | |
JPS40 | 40mm | Galvanized | 85 | JP105PES/JP200PES | |
JPS50 | 50mm | Galvanized | 50 | JP750PES | |
JPH40 | 40mm | Galvanized | 60 | JP105PES | |
JPH50 | 50mm | Galvanized | 40 | JP200PES/JP750PES |
Case:
